Demystifying Clean Architecture in Software Development

If you've spent any time reading about software engineering, you've likely encountered the term "Clean Architecture," popularized by Robert C. Martin (Uncle Bob). But what does it actually mean in practice, and why should you care? At Sarankar Developers, we adopt these principles to ensure the applications we build are maintainable, testable, and adaptable to change over years, not just months.

The Core Problem It Solves

Traditional "n-tier" architectures often suffer from tight coupling. Your business logic becomes tangled with UI frameworks, database adapters, and external APIs. When you want to switch your database from MongoDB to PostgreSQL, or migrate your frontend from Vue to React, you find that the UI and Database logic are so deeply embedded in the core application that a "simple" change requires rewriting half the codebase.

Clean Architecture solves this by strictly enforcing the Dependency Rule.

The Layers of Clean Architecture

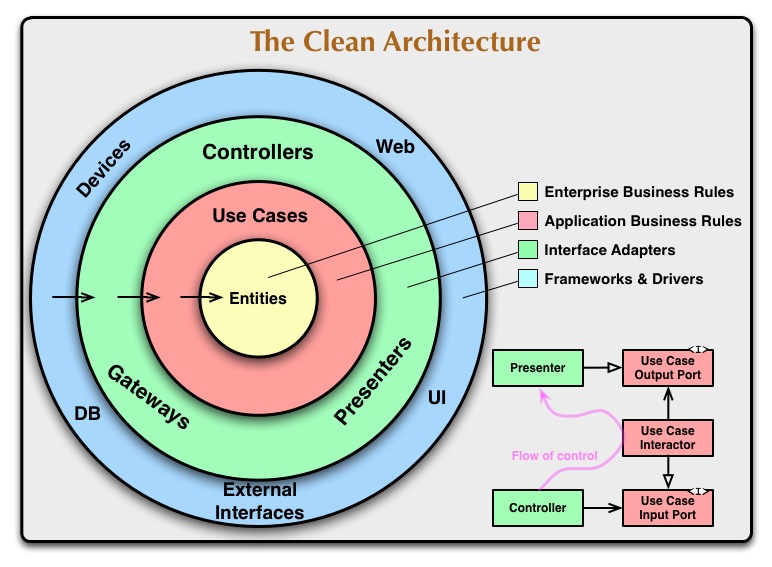

Imagine a set of concentric circles. The center circle represents the absolute core of your business, and the outer circles represent mechanisms for delivering that business value to the world.

1. Entities (Enterprise Business Rules)

At the very center are Entities. These are the core business objects and rules of your application. If you are building a banking app, an entity might be an `Account` object with an `applyInterest()` method. These rules do not know anything about databases, web frameworks, or UI. They are pure logic.

2. Use Cases (Application Business Rules)

The next layer out handles the specific use cases of the application. For the banking app, a use case might be `TransferFundsUseCase`. It orchestrates the flow of data to and from the Entities, directing them to use their enterprise business rules to achieve the goal of the use case.

3. Interface Adapters

This layer acts as a translator. It converts data from the format most convenient for the Use Cases and Entities into the format most convenient for some external agency such as the Web, or a Database. This is where your MVC Controllers, ViewModels, and Presenters live. It's also where your database Repositories are implemented (converting database rows into Entities).

4. Frameworks and Drivers

The outermost layer is composed of frameworks and tools like the Database, the Web Framework (e.g., Express.js, Flutter UI), or external API clients. This layer contains the specific, glue code that hooks into the Interface Adapters.

The Dependency Rule

The golden rule of Clean Architecture is: Source code dependencies must point only inward, toward higher-level policies.

Nothing in an inner circle can know anything at all about something in an outer circle. The `TransferFundsUseCase` (inner) does not know whether it was triggered by a mobile app button click or an automated cron job (outer). It also doesn't know if the account data is stored in memory, MongoDB, or via an external bank API.

Inversion of Control (IoC)

You might ask: "If the Use Case needs to save data, but it can't know about the Database, how does data get saved?" This is achieved through Inversion of Control using Interfaces.

The Use Case defines an interface (e.g., `IAccountRepository` with a `save()` method). The Interface Adapter layer implements that interface using the specific database framework. At runtime, the specific repository is injected into the Use Case. The Dependency Rule is maintained because the Use Case only depends on the interface (inner), not the implementation (outer).

The Benefits

• Independent of Frameworks: The architecture doesn't depend on the existence of some library. This allows you to use frameworks as tools, rather than having to cram your system into their limited constraints.
• Testable: The business rules can be tested without the UI, Database, Web Server, or any other external element. You can write fast, reliable unit tests for your entire core logic.
• Independent of UI: The UI can change easily, without changing the rest of the system.
• Independent of Database: You can swap out SQL for NoSQL or anything else. Your business rules are not bound to a specific database format.
